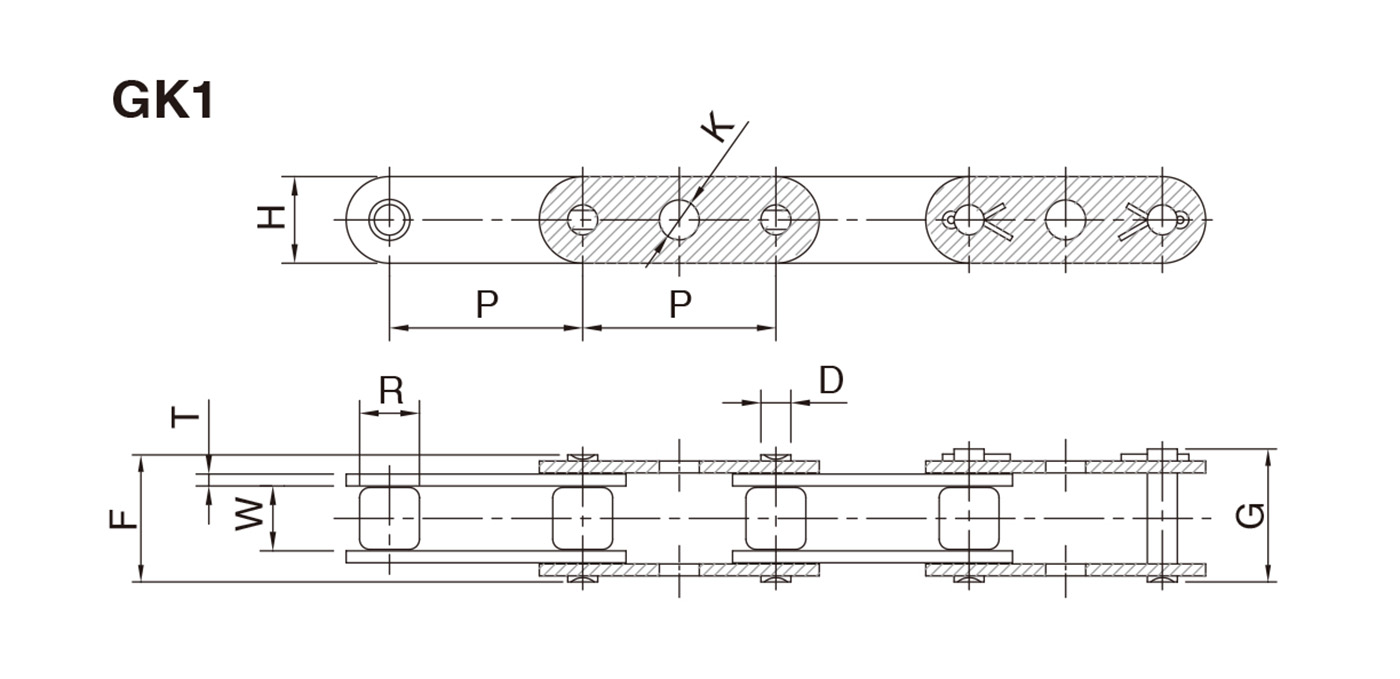

節距 |
寬 |
滾子 |
鏈片 |
小軸 |
抗拉 |
||||||
|
鏈條型號 |
P |
W |
直徑 |
高 |
厚度 |
ØK(最小值) |
直徑 |
長 |
強度 |
|||
|
|
inch |
mm |
(最小值 ) |
R(最大值) |
H (最大值) |
T |
標準 |
選配 |
D(最大值) |
F |
G |
kgf(最小值) |
|
C2040 |
1” |
25.40 |
7.85 |
7.92 |
12.0 |
1.50 |
4.15 |
6.08 |
3.98 |
17.8 |
21.7 |
1418 |
|
C2042 |
1” |
25.40 |
7.85 |
15.88 |
12.0 |
1.50 |
4.15 |
3.98 |
17.8 |
21.7 |
1418 |
|
|
C2050C |
1-1/4” |
31.75 |
9.40 |
10.16 |
15.0 |
2.00 |
6.50 |
5.50/8.10/8.25 |
5.09 |
21.8 |
25.9 |
2224 |
|
C2052 |
1-1/4” |
31.75 |
9.40 |
19.05 |
15.0 |
2.00 |
6.50 |
5.09 |
21.8 |
25.9 |
2224 |
|
|
C2060H |
1-1/2” |
38.10 |
12.57 |
11.91 |
18.0 |
3.20 |
8.20 |
6.50/8.30 10.20/11.20 |
5.96 |
30.2 |
34.8 |
3194 |
|
C2062H |
1-1/2” |
38.10 |
12.57 |
22.23 |
18.0 |
3.20 |
8.20 |
5.96 |
30.2 |
34.8 |
3194 |
|
|
C2080H |
2” |
50.80 |
15.75 |
15.88 |
24.1 |
4.0 |
10.10 |
11.10/12.10 |
7.94 |
37.4 |
42.8 |
5673 |
|
C2082H |
2” |
50.80 |
15.75 |
28.58 |
24.1 |
4.0 |
10.10 |
7.94 |
37.4 |
42.8 |
5673 |
|
