型 號

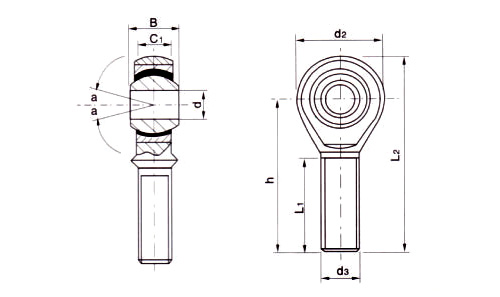

尺 寸Dimensions (mm)

允許負荷

重量

d

螺牙d3

d2

B

C1

h

L1

L2

a°

Max stst load capacity

Weight (kg)

POS 5

5

M 5×0.8

1 8

8

6

33

19

42

1 3

POS 6

6

M 6×1.0

20

9

6 .75

36

22

46

1 3

4.4

0 .021

POS 8

8

M 8×1.25

M 8×1.0

24

1 2

9

42

25

54

1 3

8.0

0 .034

POS10

1 0

M10×1.5

M10×1.25

2 8

1 4

1 0.5

4 8

29

62

1 3

12.9

0 .058

POS12

1 2

M12×1.75

M12×1.25

32

1 6

1 2

54

33

70

1 3

1 7

0.092

POS14

1 4

M14×2.0

M14×1.5

3 6

1 9

1 3.5

60

36

77

1 3

2 4

0.153

POS16

1 6

M16×2.0

M16×1.5

42

2 1

1 5

66

40

86

1 3

2 8.5

0 .205

POS18

1 8

M18×1.5

4 4

2 3

1 6.5

7 2

44

95

1 3

3 5

0 .280

POS20

2 0

M20×1.5

5 0

2 5

1 8

7 8

47

103

1 3

4 0

0 .370

POS22

2 2

M22×1.5

5 4

2 8

2 0

8 4

51

1 11

1 3

5 2

0 .475

POS25

2 5

M24×2.0

6 0

3 1

2 2

9 4

57

1 24

1 3

6 0

0 .650

POS28

2 8

M27×2.0

6 6

3 5

2 4

1 03

62

1 36

1 3

POS30

3 0

M30×2.0

7 0

3 7

2 5

1 10

66

1 45

1 3

8 1

1 .070
